Product Detail
Concrete batching plant
1. Belt conveyor type
2. Modular structure design
3. High efficient mixing circle
4. Accurate weighing system
Company profile

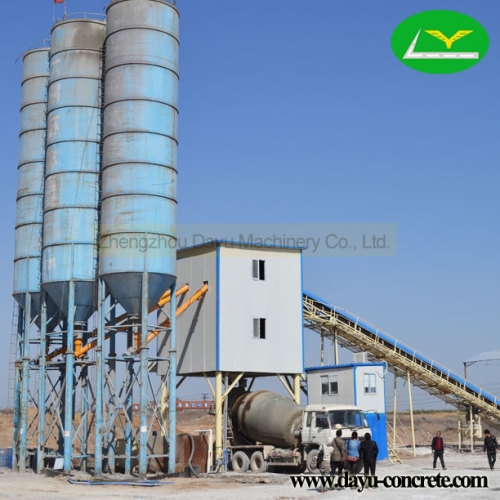

Pictures------ 120m3/hConcrete Batching Plant:
AS a leading construction machinery supplier in China, was established in September 1992 and covering above 18, 000 square meters with registering capital of RMB 50 million. Dayu machinery have established considerable market share in China and have exported to Europe, America, Russia, the Middle East, Brazil, India, Australia, South Africa, Malaysia, Kazakhstan, Egypt, Peru etc
We specilize in
1. Concrete mixing plant Belt conveyor concrete plant, hopper lift concrete plant, modular mobile concrete plant.
2. Concrete mixer Twin shaft concrete mixer, planetary concrete mixer, mini concrete mixer, diesel engine concrete mixer.
3. Components of concrete plant Concrete batching system, screw conveyor.
4. Concrete pump & truck Trailer concrete pump, Transit Mixer.
2. Concrete mixer Twin shaft concrete mixer, planetary concrete mixer, mini concrete mixer, diesel engine concrete mixer.
3. Components of concrete plant Concrete batching system, screw conveyor.
4. Concrete pump & truck Trailer concrete pump, Transit Mixer.
Introduction
HZS90 type 120m3/h concrete Batching Plantas Belt conveyor mixing plant Adopts Modular structure design and PLC automatic logical program control and host computor all-time tracking management. Mainly applied in large, middle and small scale factory for prefabrication, highway, bridge, water conservancy, dock and civil construction. concrete Batching Plant can mix no-slump concrete, plastic concrete, light aggregate concrete and various types of mortor
Features and advantages
1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed.
2. Mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
3. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
4. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable.
5. concrete Batching Plant's PC+PLC control system ensures the high reliability.
6. With its virtue of precise computation, it can meet the requirement of every high performance concrete.
7. Human-based intelligent control facilitates the operation greatly.
8. Structural members are durable, and most electric elements adopt world famous brands.
2. Mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
3. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
4. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable.
5. concrete Batching Plant's PC+PLC control system ensures the high reliability.
6. With its virtue of precise computation, it can meet the requirement of every high performance concrete.
7. Human-based intelligent control facilitates the operation greatly.
8. Structural members are durable, and most electric elements adopt world famous brands.
Technical parametes:
| Entire Plant | Type | HZS60 | HZS90 | HZS120 | HZS150 |
| Capacity (m3/h) | 60 | 90 | 120 | 150 | |
| Standard Discharging Height(mm) | 3800 | 3800 | 4000 | 4000 | |
| Operation Cycle Time(s) | 60 | 60 | 60 | 60 | |
| Max Aggregate Size(mm) | 60/80 | 60/80 | 60/80 | 60/80 | |
| Total Installed Power(kw) | 105 | 145 | 210 | 260 | |
| Total Weight (T) | 50 | 60 | 80 | 100 | |
| Size(m) (L x W x H) | 28.5x10.6x18.8 | 58.6x12.4x18.8 | 60.2x13.7x18.8 | 43.6x24.0x18.8 | |
| Mixing System | Mixer | JS1000 | JS1500 | JS2000 | JS3000 |
| Mixing Motor(kw) | 2x18.5 | 2x30 | 2x37 | 2x55 | |
| Batching System | Batching Machine | PLD1600 | PLD2400 | PLD3200 | PLD4800 |
| Capacity of Storage Hopper(m3) | 4x5 | 4x10 | 4x18 | 4x25 | |
| Weight System | Aggregate Weighing Precision(% | ±2 | ±2 | ±2 | ±2 |
| Cement Weighing Precision(%) | ±1 | ±1 | ±1 | ±1 | |
| Water Weighing Precision(%) | ±1 | ±1 | ±1 | ±1 | |
| Additive weighing Precision(%) | ±1 | ±1 | ±1 | ±1 |
Pictures------ 120m3/hConcrete Batching Plant:
60m3/h Conveyor belt plant
90-120m3/h Conveyor belt plant
150- 180m3/h Conveyor beltplant
