mobile asphalt plant asphalt mixing plant mobile asphalt drum mix plant mobile asphalt equipment from China manufacturer - Liaoyuan Road Construction Machinery Co.,Ltd

mobile asphalt plant asphalt mixing plant mobile asphalt drum mix plant mobile asphalt equipment

Price:	70000.0~100000.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU
Special Groups:	mobile asphalt plant (5)
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MDHB

Production Capacity: 500 sets per year

Delivery Date: 20-30 Working Days

Condition New: Power Type Electric

Certification ISO9001,ISO14001,CE, Gost: Warranty 18 months

Fuel oil consumption 5-7.5kg/t: fuel coal consumption 13-15...

Means of Transport: Ocean,Land

Packing: 2 units containers

Brand Name: Dayu

Voltage 220V/380V: Power(W) 24.3KW(oil burner)

After-sales Service Provided Engineers available to service machinery overseas: Mixer type Drum

fuel coal consumption 13-15kg/t: Aggregate accuracy ±3%

40t/h mobile asphalt plant
1. Output 10TPH
2. ISO9001, ISO14001
3. for fuel coal and fuel oil
4. Good quality, 24 hours

Cmpany profile

Dayu supply asphalt mixing plant base on ISO9001,ISO14001, CE, GOST,

Businees scope: batch mix asphalt plant, drum mix asphalt plant, mobile asphalt palnt ,

small asphalt plant,asphalt recycling plant, asphalt hot box and other road constrution equipment.

Dayu 40t/h Mobile Asphalt Plant are used all ove China and have exported to Europe, America, Russia,

the Middle East, Brazil, India, Australia, South Africa, Malaysia, Kazakhstan, Egypt, Peru,etc.

Introduction:

Dayu MDHB 40t/h Mobile Asphalt Plant mainly including burner, drying and mixing drum, water dust catcher,bitumen supply system, electric control system, this single drum mixing type asphalt plant can continuously produce asphalt mixture.

Main Structure ofportable asphalt batch plant( MDHB Series ):

Control System

The heat overload protect breaker is safe and reliable,the whole set control system is integrated on the operation platform,which is convenient and shortcut. The equipment has two operation modes: inter-lock operation and single-machine operation

Material Supply System

It can make aggregate material of four different sizes mixed well according to the construction requirement, for the oversized grain, it will be separated by the middle screen, and the qualified material will be conveyed into drying drum by tilted belt conveyer.

Mixing Mainframe

Integrated drying, heating and mixing in the whole part: the aggregate material will form an inadequate material flow in the drying section and go ahead promptly for preheating, and then it will form a sufficient material flow and heat quickly in the heating section.

Coal Burning System

The high efficient coal crusher integrated with speed adjustable coal powder supply, it provides the coal powder with size of less than 50 micron far the burner. The burner adopts oil supply device and wind supply device, and can provide sufficient heat energy for the mixing plant.

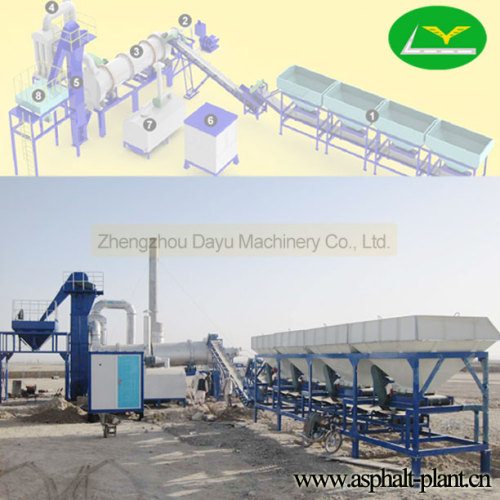

Pictures of 40t/h Mobile Asphalt Plant ( MDHB Series ):

Technical parameter of40t/h Mobile Asphalt Plant (MDHB series):

Model	Productivity (t/h)	Weighing Accuracy		Total Power(kW)	Fuel Consumption(kg/t)
Model	Productivity (t/h)	Aggregate	Asphalt	Total Power(kW)	Coal	Oil
MDHB-20	20	±1.5%	±1%	40	10	5.5-7
MDHB-40	40	±1.5%	±1%	75	10-13	5.5-7
MDHB-60	60	±1.5%	±1%	128	10-13	5.5-7
